Welcome to Credo, We are an Industrial Water Pump Manufacturer.
Split Case Double Suction Pump (CPS-CPSV)

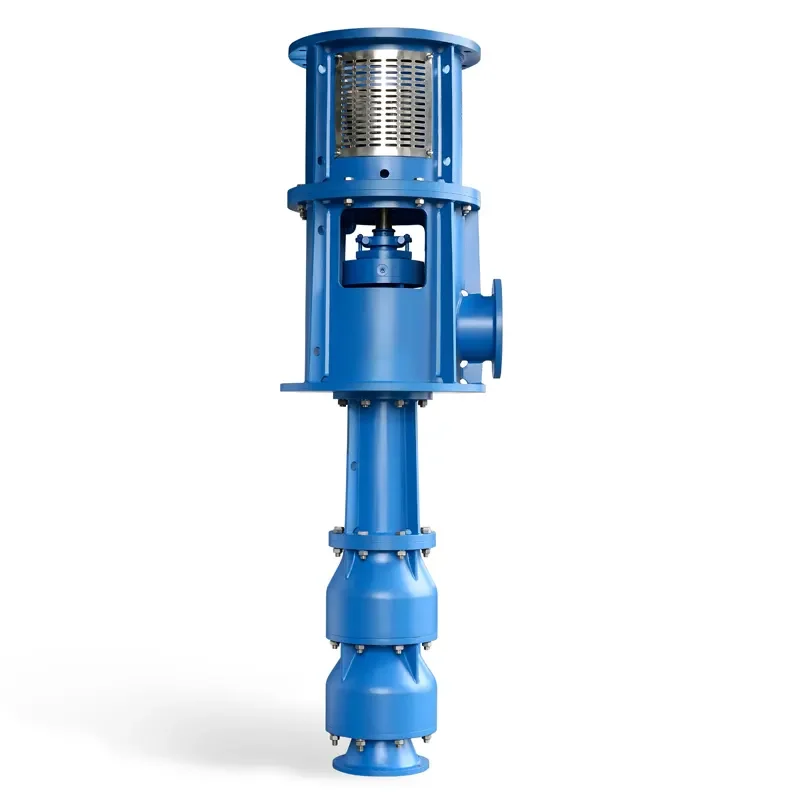

The VCP series vertical turbine pump is a VS1 type centrifugal pump available in both single-stage and multistage configurations. Designed to cover a wide range of hydraulic conditions, it ensures optimum efficiency and reliable performance across various industries. Engineered for durability and versatility, this vertical turbine pump is capable of handling clean water, river water, seawater, sewage containing solids, and even corrosive industrial liquids, making it a dependable solution for challenging pumping requirements.
Key Design Features
Versatile Hydraulic Design: Available in single-stage and multistage options to suit different flow and head requirements.
High Efficiency: Optimized hydraulic components ensure superior energy efficiency and long-term cost savings.
Durable Construction: Offered in a wide selection of materials, including stainless steel, bronze, and duplex alloys, to handle abrasive and corrosive fluids.
Robust Shaft and Bearing System: Heavy-duty shaft with precision bearings minimizes vibration, enhances stability, and extends service life.
Wide Capacity Range: Designed to handle small to extra-large flow rates, meeting the needs of municipal, industrial, and marine applications.
Performance Range
Capacity: 50-2200m3/h
Head: 5-220m
Power: 18.5-5600kw
Outlet dia: 150-1000mm
Temperature:-20℃-80℃
Range chart: 1480rpm
Performance Range
Capacity: 800-10000m3/h
Head: 5-220m
Power: 18.5-5600kw
Outlet dia: 150-1000mm
Temperature:-20℃-80℃
Range chart: 590rpm-980rpm
Water Supply & Distribution: Municipal water systems, irrigation, and large-scale water transfer projects.
Power Generation: Cooling water circulation in thermal and nuclear power plants.
Industrial Processing: Pulp and paper, sugar mills, chemical processing, and oil refineries.
Marine & Offshore: Seawater intake, ballast systems, and offshore platform utilities.
Mining & Dewatering: Handling slurry-laden water, pit drainage, and process water transfer.
Wastewater & Desalination: Raw water intake, sewage handling, and seawater desalination plants.
| Pump Parts | For Clear Water | For Sewage | For Seawater |
| Discharge Elbow / Casing | Carbon Steel | Carbon Steel | S.S / Super Dulex |
| Diffuser / Suction Bell | Cast Iron | Cast Iron / Ductile Iron / Cast Steel / S.S | S.S / Super Dulex |
| Impeller / Impeller Chamber / Wear Ring | Cast Iron / Cast Steel | Ductile Iron / S.S | S.S / Super Dulex |
| Shaft / Shaft Sleeve / Coupling | Steel / S.S | Steel / S.S | S.S / Super Dulex |
| Guide Bearing | PTFE / Thordon | ||
| Remark | Final material depends on the liquid condition or the client’s request. | ||
Our pump testing center is authorized with a National First-Grade Certificate of Accuracy , ensuring reliable and precise test results. All equipment is built to meet international standards such as ISO and DIN.
Testing Capabilities
Wide Pump Range: Split case pumps, vertical turbine pumps, multistage pumps, and more.
High Power Capacity: Motor power up to 2,800 kW.
Large Flow Capacity: Suction diameters up to 2,500 mm.
Advantages
Certified Accuracy: National accreditation guarantees credible test reports.
Global Standards: Compliance with ISO and DIN supports international projects.
Quality Assurance: Each pump is fully tested before delivery.
With these advanced facilities, we ensure every pump delivers safe, efficient, and reliable performance.
Various Arrangement
Diesel Engine Pump
