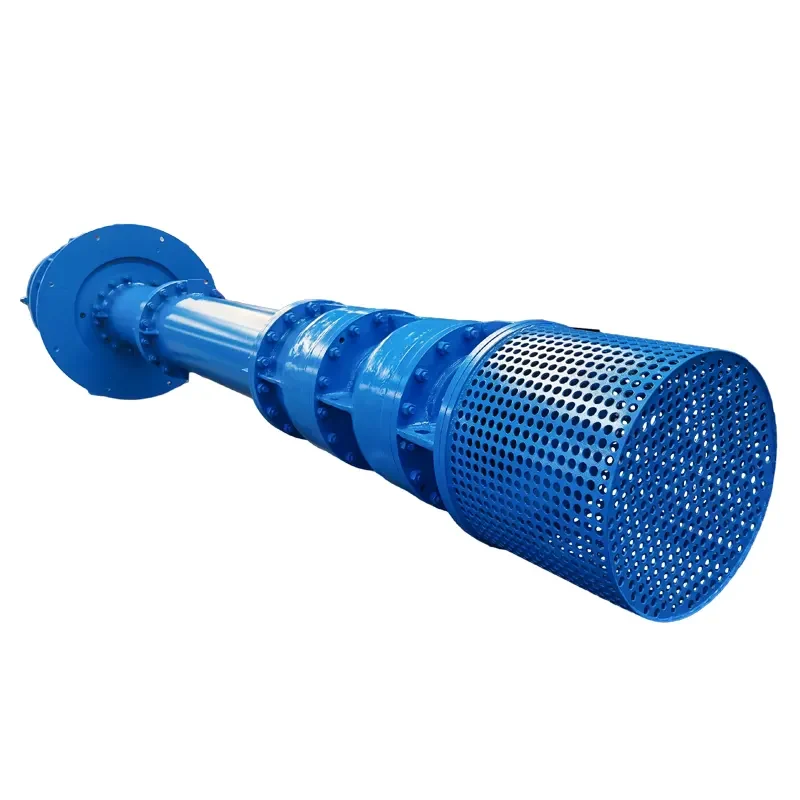

Submersible Vertical Turbine Pump
The submersible vertical turbine pump is a high-performance centrifugal pump designed for applications requiring high volume, high lift, and high discharge pressure. Installed vertically, it can be configured in single-stage or multistage designs to meet diverse hydraulic conditions. Unlike conventional vertical turbine pumps driven by an above-ground motor, the submersible vertical turbine pump integrates a submersible motor directly with the pump bowl assembly, reducing footprint, simplifying installation, and ensuring reliable operation even in restricted spaces or underwater environments.
Key Design Features
Compact Submersible Design: Motor and pump bowl are installed together, eliminating the need for long drive shafts or gear drives.
Single or Multistage Options: Configurable for high head or large flow applications.
Space-Saving Installation: Requires minimal surface equipment, ideal for limited space or below-ground facilities.
Flexible Materials: Available in cast iron, stainless steel, duplex steel, and bronze for handling clean water, seawater, and corrosive fluids.
Low Maintenance: No line-shaft bearings or lubrication systems required, reducing maintenance costs.
High Efficiency: Optimized hydraulics provide energy savings and long service life under continuous operation.
Performance Range
Capacity: 50-2200m3/h
Head: 5-220m
Power: 18.5~5600kw
Outlet dia: 150-1000mm
Temperature:-20℃-80℃
Range chart: 1480rpm
Performance Range
Capacity: 800-10000m3/h
Head: 5-220m
Power: 18.5-5600kw
Outlet dia: 150-1000mm
Temperature:-20℃-80℃
Range chart: 590rpm-980rpm
Municipal Water Supply: Groundwater extraction and city water distribution.
Irrigation Systems: Large-scale agricultural water delivery.
Desalination Plants: Seawater intake and high-pressure feed.
Power Plants: Cooling water supply and circulation.
Industrial Applications: Process water transfer in chemical, paper, and steel industries.
Mining & Construction: Dewatering of pits, tunnels, and underground projects.
| Pump Parts | For Clear Water | For Sewage | For Seawater |
| Discharge Elbow / Casing | Carbon Steel | Carbon Steel | S.S / Super Dulex |
| Diffuser / Suction Bell | Cast Iron | Cast Iron / Ductile Iron / Cast Steel / S.S | S.S / Super Dulex |
| Impeller / Impeller Chamber / Wear Ring | Cast Iron / Cast Steel | Ductile Iron / S.S | S.S / Super Dulex |
| Shaft / Shaft Sleeve / Coupling | Steel / S.S | Steel / S.S | S.S / Super Dulex |
| Guide Bearing | PTFE / Thordon | ||
| Remark | Final material depends on the liquid condition or the client’s request. | ||
Our pump testing center is authorized with a National First-Grade Certificate of Accuracy , ensuring reliable and precise test results. All equipment is built to meet international standards such as ISO and DIN.
Testing Capabilities
Wide Pump Range: Split case pumps, vertical turbine pumps, multistage pumps, and more.
High Power Capacity: Motor power up to 2,800 kW.
Large Flow Capacity: Suction diameters up to 2,500 mm.
Advantages
Certified Accuracy: National accreditation guarantees credible test reports.
Global Standards: Compliance with ISO and DIN supports international projects.
Quality Assurance: Each pump is fully tested before delivery.
With these advanced facilities, we ensure every pump delivers safe, efficient, and reliable performance.
