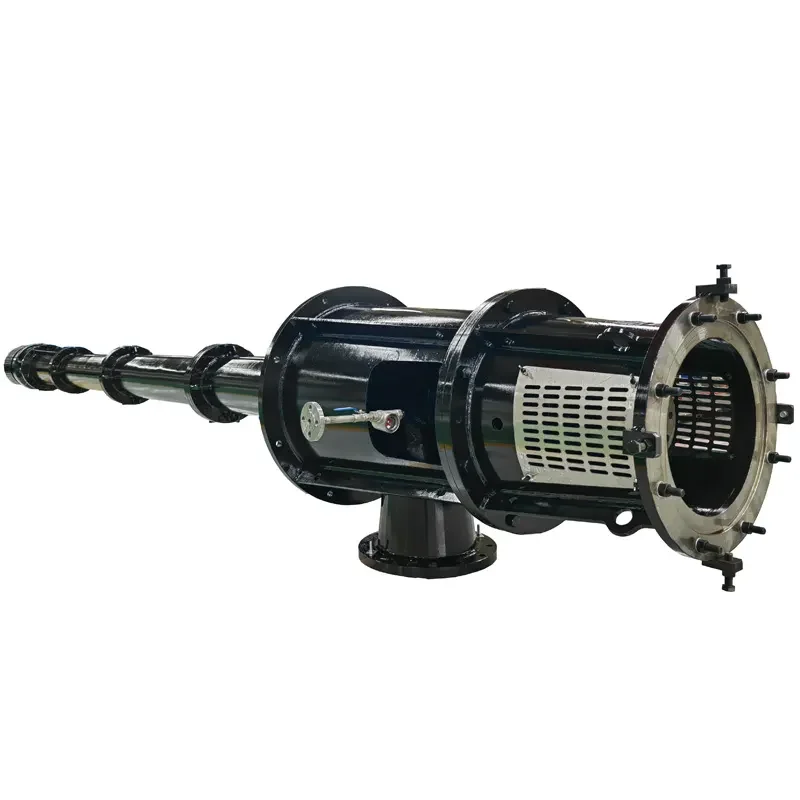

The deep well vertical turbine pump is a specialized centrifugal pump designed to lift water and other fluids from underground reservoirs or deep aquifers. It is typically driven by an above-ground motor or submersible motor, connected through a long vertical shaft to the impellers located at the bottom of the well. With its robust design and ability to handle large volumes at significant depths, the deep well vertical turbine pump ensures reliable and efficient fluid transfer for a wide range of industrial, municipal, and agricultural applications.

Key Design Features

Long Vertical Shaft Drive: Connects the motor to impellers deep underground, ensuring efficient power transmission.

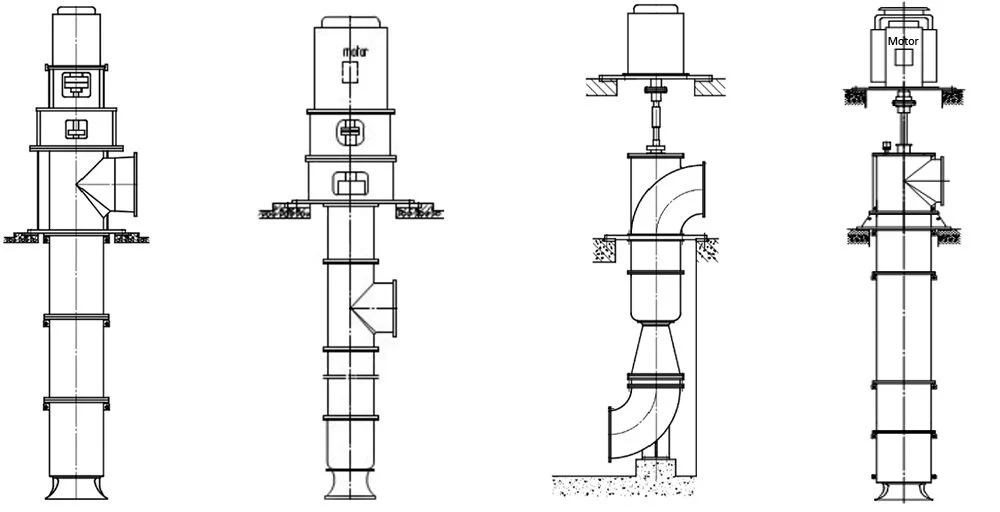

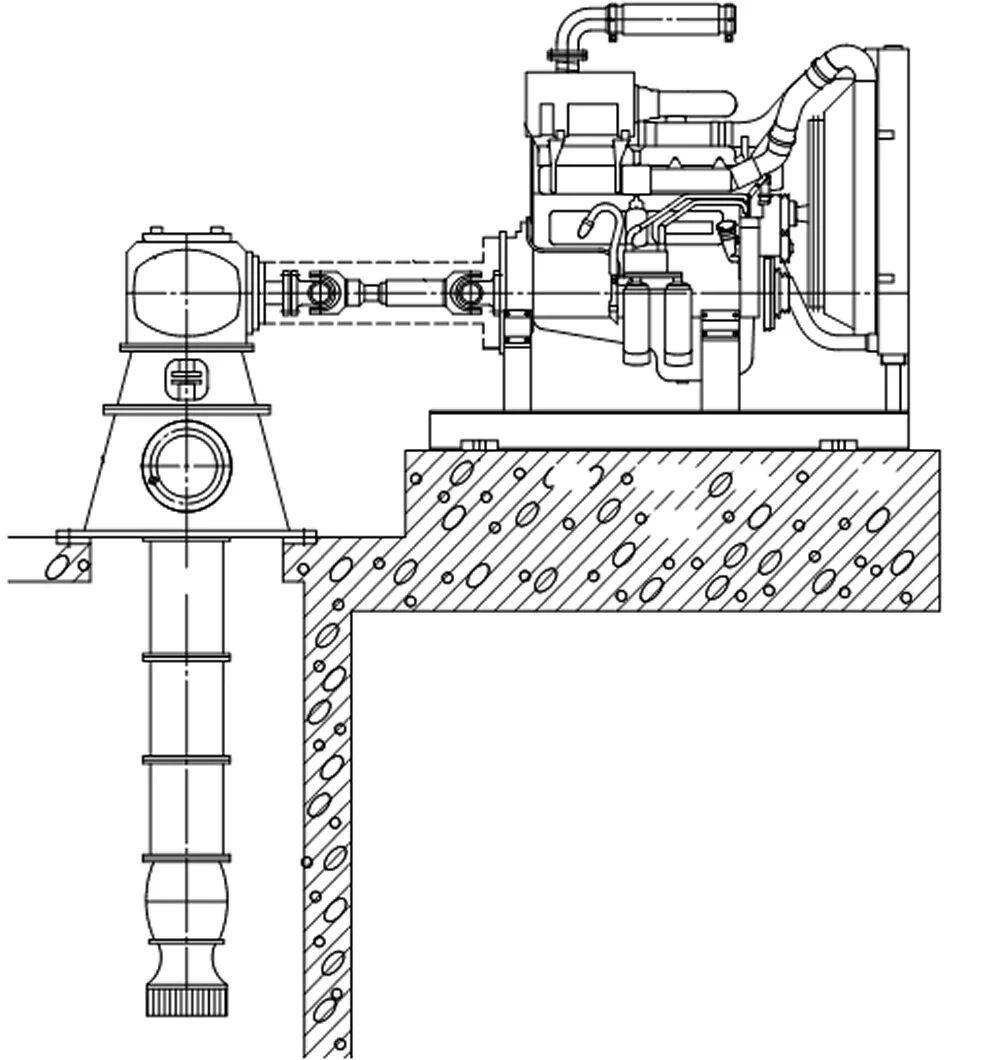

Flexible Drive Options: Can be powered by vertical hollow shaft motors, solid shaft motors, or right-angle gear drives for diesel or steam turbines.

High Efficiency Impellers: Precision-engineered impellers (open or enclosed) provide excellent hydraulic performance and reduced energy consumption.

Durable Column Bearings: Line-shaft bearings are water- or oil-lubricated to ensure smooth operation and long service life.

Material Versatility: Available in cast iron, stainless steel, bronze, and duplex alloys for handling clean water, seawater, or corrosive/abrasive fluids.
