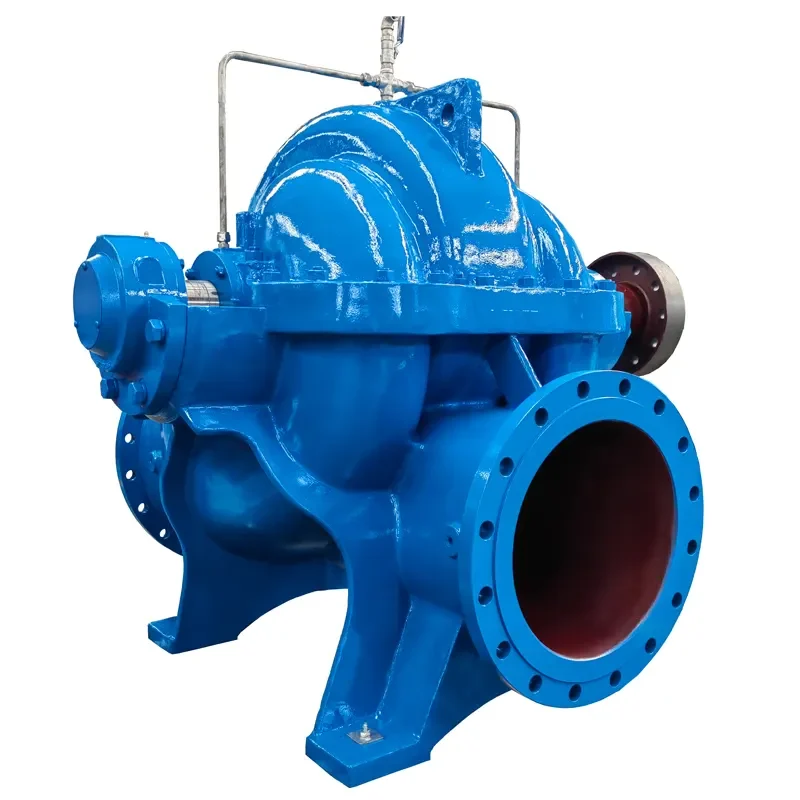

Split Casing Pump
The split casing pump is a double suction, single-stage centrifugal pump designed for high efficiency, stable operation, and long service life. Its symmetrical impeller and split casing ensure excellent hydraulic balance, low vibration, and strong cavitation resistance, while the horizontally split design allows easy access to internal parts without removing piping. Combining efficiency, reliability, and easy maintenance, it is widely used in industrial, commercial, and municipal applications worldwide.
Key Design Features
Double Suction Impeller: Fluid enters the impeller from both sides, balancing axial thrust, minimizing shaft deflection, and extending bearing life.
Single-Stage Centrifugal Design: Provides high flow capacity with relatively low to medium heads, ideal for large-scale water transfer applications.
Horizontally Split Casing: The casing can be opened along the shaft centerline, giving direct access to the impeller, bearings, and shaft without disturbing pipe connections.
High Hydraulic Efficiency: Optimized flow channels reduce energy losses, ensuring excellent efficiency and reduced operating costs.
Good Cavitation Performance: Low NPSH requirements help prevent cavitation damage, ensuring stable and safe operation even under challenging suction conditions.
Performance Range
Capacity:100-3000m3/h
Head:7~220m
Efficiency: Up to 92%
Power:15~4000KW
Inlet Dia.:150~1600mm
Outlet Dia.:100~1400mm
Working Pressure:≤2.5MPa
Temperature:-20℃~+80℃
Speed:1480rpm~2970rpm
Performance Range
Capacity:100-30000m3/h
Head:7~150m
Efficiency: Up to 92%
Power:15~4000KW
Inlet Dia.:150~1600mm
Outlet Dia.:100~1400mm
Working Pressure:≤2.5MPa
Temperature:-20℃~+80℃
Speed: 980rpm~370rpm
The split casing pump is widely applied in projects that demand large-capacity, reliable water and liquid transfer, including:
Municipal Water Supply & Distribution: Ensures dependable delivery of clean water to urban and regional networks.
HVAC & District Cooling Systems: Circulates chilled and hot water in large commercial and industrial complexes.
Agricultural Irrigation & Drainage: Provides efficient water transfer for farmland irrigation and flood control systems.
Industrial Water Circulation: Supplies cooling and process water in power plants, refineries, steel mills, and chemical industries.
Mining & Dewatering Operations: Handles groundwater removal and large-scale fluid transfer in mining projects.
Seawater Intake & Desalination Plants: Used for raw seawater pumping and pre-treatment processes in desalination facilities.
Fire-Fighting Systems: Configurable for high-capacity fire protection systems, with UL/FM certification options available.
| Pump Parts | For Clear Water | For Sewage | For Seawater |
| Casing | Cast Iron | Ductile Iron | S.S / Super Dulex |
| Impeller | Cast Iron | Cast Steel | S.S / Super Dulex / Tin Bronze |
| Shaft | Steel | Steel | S.S / Super Dulex |
| Shaft Sleeve | Steel | Steel | S.S / Super Dulex |
| Wear Ring | Cast Iron | Cast Steel | S.S / Super Dulex / Tin Bronze |
| Remark | Final material depends on the liquid condition or the client’s request. | ||
Our pump testing center is authorized with a National First-Grade Certificate of Accuracy , ensuring reliable and precise test results. All equipment is built to meet international standards such as ISO and DIN.
Testing Capabilities
Wide Pump Range: Split case pumps, vertical turbine pumps, multistage pumps, and more.
High Power Capacity: Motor power up to 2,800 kW.
Large Flow Capacity: Suction diameters up to 2,500 mm.
Advantages
Certified Accuracy: National accreditation guarantees credible test reports.
Global Standards: Compliance with ISO and DIN supports international projects.
Quality Assurance: Each pump is fully tested before delivery.
With these advanced facilities, we ensure every pump delivers safe, efficient, and reliable performance.
