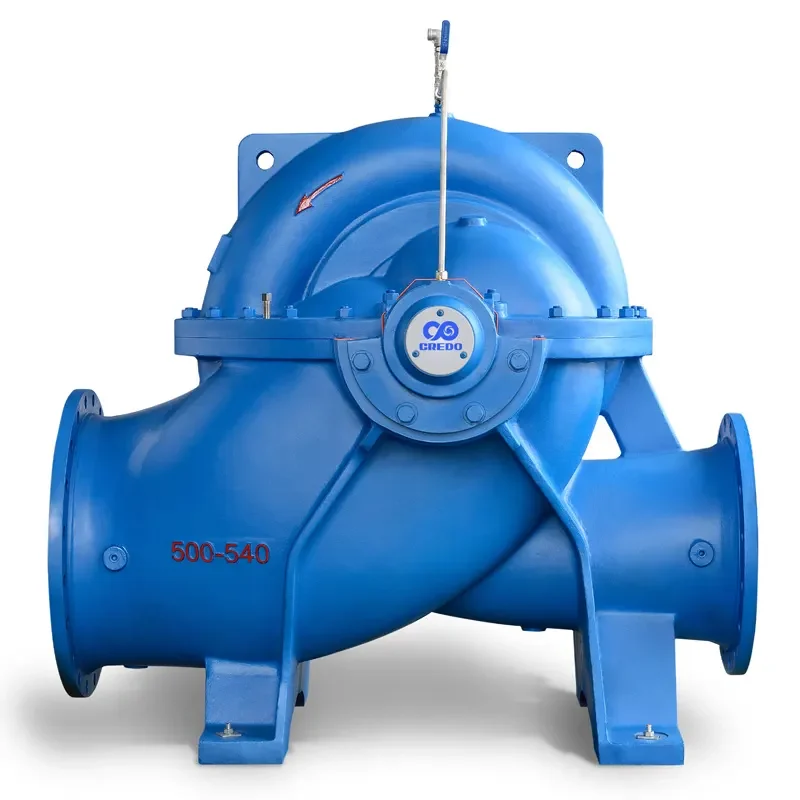

Split Case Double Suction Pump (CPS-CPSV)

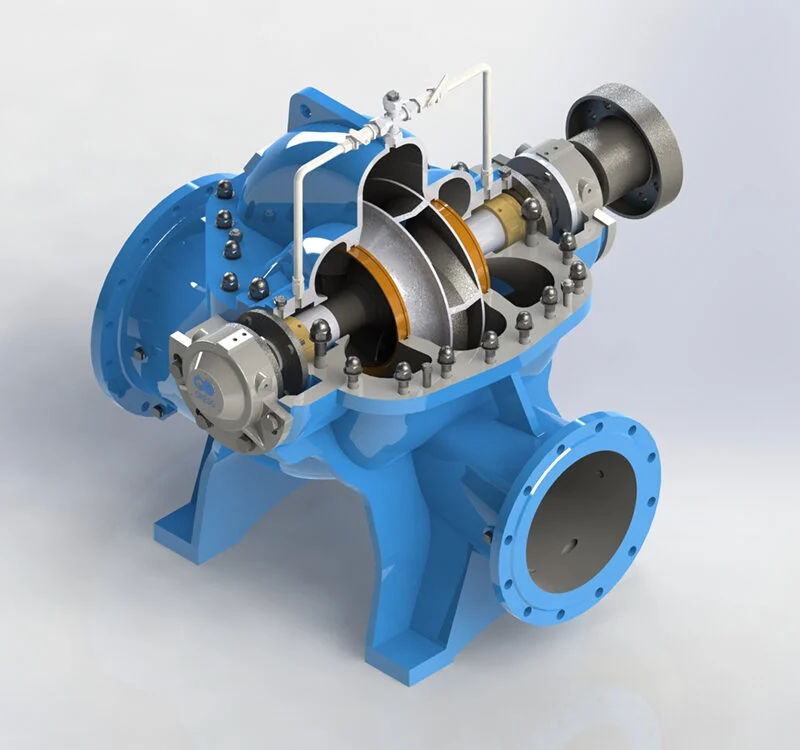

The CPS series split case double suction pump is engineered for high efficiency, reliability, and long service life in demanding industrial and commercial applications. Designed as a single-stage, double suction impeller pump, it offers excellent hydraulic balance and reduced axial thrust, ensuring smooth and stable operation even under heavy-duty conditions.
Key Design Features
High Efficiency & Low Noise: Advanced hydraulic design ensures efficient operation and minimal vibration, suitable for industrial and municipal applications.
Balanced Impeller: Dynamically balanced to ISO 1940-1 Grade 6.3 for smooth performance and extended service life.
API-Compliant Rotor: Rotor components meet API 610 Grade 2.5, ensuring reliability under demanding conditions.
Flexible Bearing Lubrication: Standard grease lubrication; oil type also available for specific requirements.
Interchangeable Shaft Seals: Packing or mechanical seals can be swapped without modification.
Bidirectional Rotation: Supports clockwise or counter-clockwise rotation without changes.

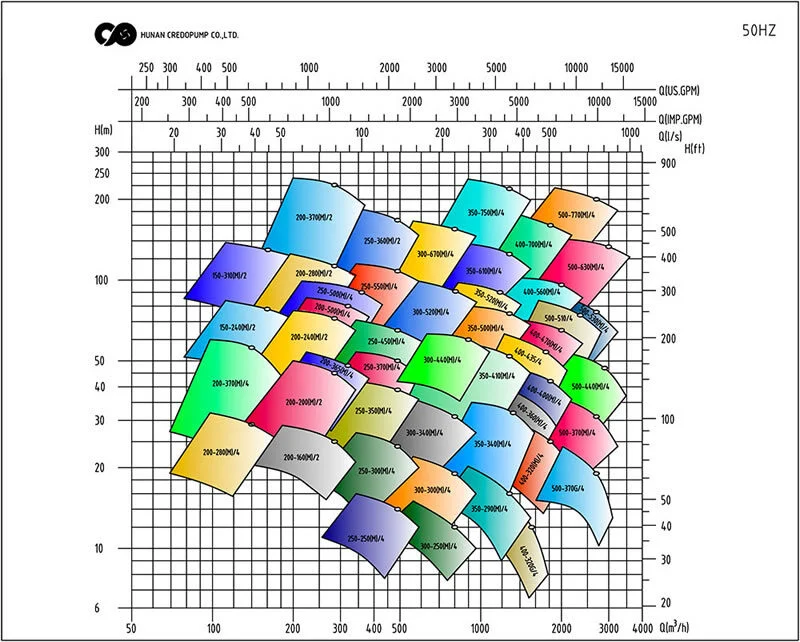

Performance Range
Capacity:100-3000m3/h
Head:7~220m
Efficiency: Up to 92%
Power:15~4000KW
Inlet Dia.:150~1600mm
Outlet Dia.:100~1400mm
Working Pressure:≤2.5MPa
Temperature:-20℃~+80℃
Speed: 1480rpm~2970rpm

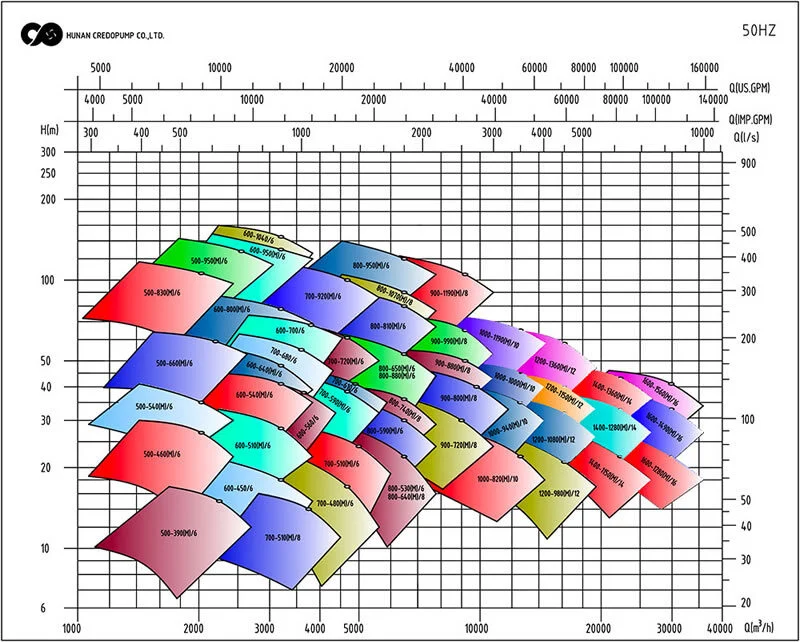

Performance Range
Capacity:100-30000m3/h
Head:7~150m
Efficiency: Up to 92%
Power:15~4000KW
Inlet Dia.:150~1600mm
Outlet Dia.:100~1400mm
Working Pressure:≤2.5MPa
Temperature:-20℃~+80℃
Speed:980rpm~370rpm
The split case double suction pump is particularly suited for large-capacity and continuous-duty operations where efficiency, reliability, and hydraulic balance are critical.
Large-Scale Municipal Water Supply & Distribution: Ensures stable delivery of massive volumes of clean water over long distances to urban and regional networks.
Irrigation & Agricultural Water Transfer: Supports wide-area irrigation systems requiring high flow and stable operation under continuous duty.
Industrial Water Circulation Systems: Provides reliable cooling and process water circulation for steel mills, refineries, and chemical industries.
Seawater Intake & Desalination Plants: Handles high flow seawater pumping for intake structures and pre-treatment stages in desalination processes.
Flood Control & Drainage Projects: Delivers powerful pumping capacity for emergency drainage, flood protection, and large pumping stations.
District Cooling & Central Air Conditioning Plants: Circulates chilled water for large urban cooling systems and commercial complexes.
| Pump Parts | For Clear Water | For Sewage | For Seawater |
| Casing | Cast Iron | Ductile Iron | S.S / Super Dulex |
| Impeller | Cast Iron | Cast Steel | S.S / Super Dulex / Tin Bronze |
| Shaft | Steel | Steel | S.S / Super Dulex |
| Shaft Sleeve | Steel | Steel | S.S / Super Dulex |
| Wear Ring | Cast Iron | Cast Steel | S.S / Super Dulex / Tin Bronze |
| Remark | Final material depends on the liquid condition or the client’s request. | ||
Our pump testing center is authorized with a National First-Grade Certificate of Accuracy , ensuring reliable and precise test results. All equipment is built to meet international standards such as ISO and DIN.
Testing Capabilities
Wide Pump Range: Split case pumps, vertical turbine pumps, multistage pumps, and more.
High Power Capacity: Motor power up to 2,800 kW.
Large Flow Capacity: Suction diameters up to 2,500 mm.
Advantages
Certified Accuracy: National accreditation guarantees credible test reports.
Global Standards: Compliance with ISO and DIN supports international projects.
Quality Assurance: Each pump is fully tested before delivery.
With these advanced facilities, we ensure every pump delivers safe, efficient, and reliable performance.
